ControlLogix L8

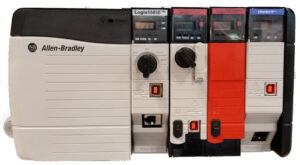

The Allen-Bradley ControlLogix 5580 (L8) series by Rockwell Automation represents a significant advancement in programmable logic controllers (PLCs), offering enhanced performance, scalability, and integrated safety features. Designed for complex and high-speed applications, the L8 series is ideal for large-scale manufacturing operations.

Programming Features and Benefits:

• Enhanced Performance: The L8 controllers provide up to 45% more capacity compared to previous models, enabling the handling of more complex processes and reducing the need for additional controllers.
• Integrated Safety: The L8 series includes scalable safety solutions, achieving SIL2/PLd or SIL3/PLe performance. This integration streamlines system design and reduces the need for separate safety controllers.
• High-Speed Communication: Equipped with a 1 gigabit (Gb) embedded Ethernet port, the L8 controllers facilitate high-speed I/O and motion control, enhancing system responsiveness and data throughput.
• Advanced Diagnostics: The controllers offer enhanced diagnostics and troubleshooting capabilities, allowing for quicker identification and resolution of issues, thereby minimizing downtime.
• Programming Languages: The L8 series supports multiple programming languages to provide the right tool for the application, including:
  • Relay Ladder,
  • Structured Text,
  • Function Block Diagram, and
  • Sequential Function Chart (SFC),

CPU Models in the L8 Series:

The ControlLogix 5580 series includes several CPU models, each tailored to specific application needs:

• 1756-L81E: This model offers 3 MB of user memory and is suitable for standard applications requiring high performance.
• 1756-L82E: Featuring 4 MB of user memory, this controller is designed for applications with higher memory demands.
• 1756-L83E: With 8 MB of user memory, this model is ideal for more complex applications requiring substantial processing power.
• 1756-L85E: This high-performance controller offers 16 MB of user memory and is optimized for large-scale, high-speed applications.

Each model in the L8 series is designed to provide robust performance, scalability, and integrated safety features, making them suitable for a wide range of industrial automation applications.
